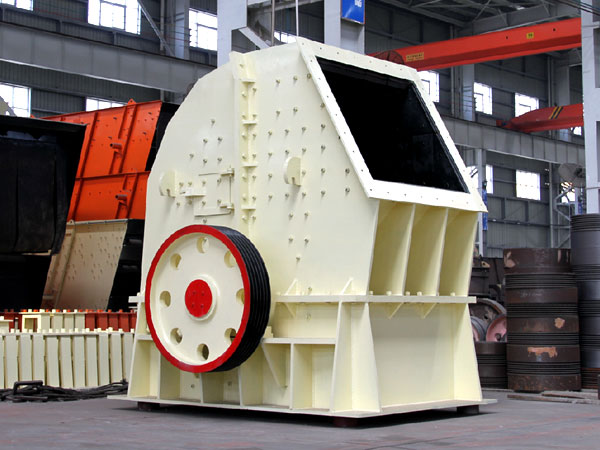

Heavy Hammer Crusher

FOB Reference Price: Get Latest PriceGet Latest Price

Production capacity: 100-1100t/h

Feeding size: ≤600–≤1200mm

Power: 110–≤280kw

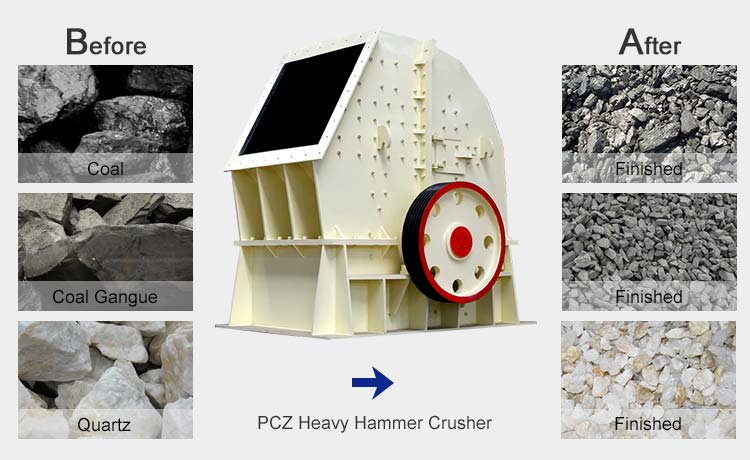

Material: limestone, coal, salt, gypsum, alum, brick, coal gangue, and etc.

Trade Assurance

Zhongde Heavy Industries Co., Ltd. China(Mainland)

Product Introduction

1, Heavy hammer crusher is applied to highways, high-speed railways, tunnels, large bridge, cement, metallurgy, building materials, coal, and chemical industry.

2, Heavy hammer crusher has large feeding size and small discharging size, and can change secondary crushing to primary crushing.

3, This heavy hammer crusher has large weight, and rotor speed is reasonable, which fully embodies the advantages of crushing light material with heavy hammer, and has a unique super ability to erode the stone crusher.

Advantages:

1, Heavy hammer crusher is new type of crusher improved based on the PC series crusher.

2, According to user feedback and breaking industry developments, and combined with experimental data and research and development of stone crushing test.

3, Compared with hammer crusher, heavy hammer crusher has large hammer pin diameter, heavy hammer head, high crushing line speed and other striking features.

4,As well as large feeding granularity, large crushing ratio, low maintenance costs, etc.

Technical Data

Model Rotor diameter×length (mm) Feed Opening Length×width(mm) Feeding Size (mm) Processing Capacity(t/h) Power (kw) Dimensions L×W×H (mm)
PCZ1308 Φ1330×790 870×780 ≤380 60-160 132 2880×2130×2390
PCZ1410 Φ1400×1000 1060×740 ≤450 80-210 2×90(160) 2830×2100×2485
PCZ1610 Φ1600×1000 1090×930 ≤480 100-230 2×132 3370×2415×2750
PCZ1612 Φ1600×1200 1340×1140 ≤500 120-350 2×160 3370×2613×2750
PCZ1615 Φ1600×1500 1570×1140 ≤550 200-550 2×200 3370×2925×2750
PCZ1716 Φ1700×1600 1420×1200 ≤600 400-850 2×250 3520×3000×3210
PCZ1720 Φ1700×2000 2030×1200 ≤650 500-1000 2×400 3670×3390×3330
PCZ1920 Φ1900×2000 1980×1210 ≤750 800-1500 2×500 4490×3910×3600
PCZ2225 Φ2200×2500 2530×1610 ≤1000 1500-3000 1250 4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

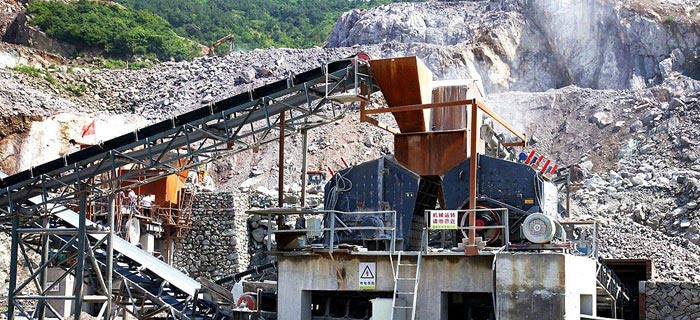

Production Project
