Feeding size: <25 mm
Production capacity: 3-40 t/h

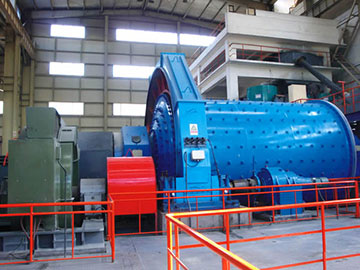

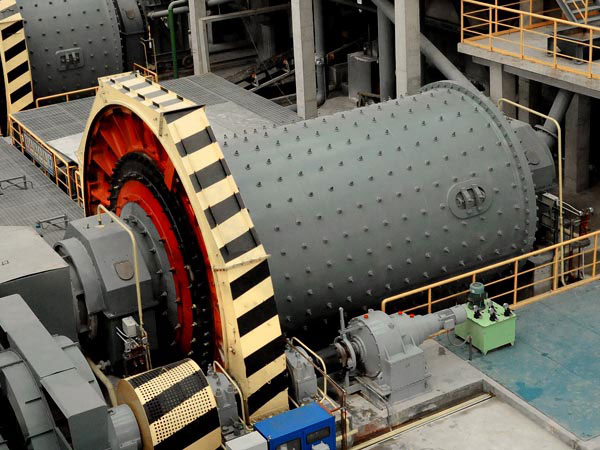

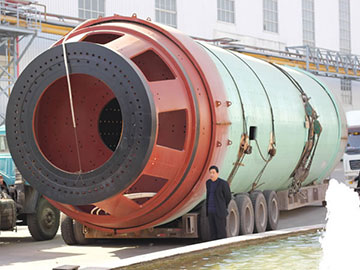

Air-swept Coal Mill is the key equipment of rotary kiln cement clinker production system, also used in thermal power plant,metallurgy, chemical & sugar industry.
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Air-swept Coal Mill is the key equipment of rotary kiln cement clinker production system, also used in thermal power plant,metallurgy, chemical & sugar industry.

Features:
The air-swept coal mill produce by our company has the following features:
a.Production continously, high output.
b.Fineness adjustable.
c.Compact structure, running steadily, convenient to install & maintain, long service life.
d.Adaptability to various of materials and grinding coal with different hardness.

Note:
1. Weight of grinding media is not included.
2. When placing order, please indicate the motor voltage & driving mode(Dextrorotary or levorotatory type: if no indication, manufacturer will supply equipments in dextrorotary).

| (Dia.×Length) (m) |
Speed (r/min) |
Griding Media Loading (t) |
Main Motor (KW) |
Main Reducer |
| Φ1.7×2.5 | 24.5 | 7.5 | 95 | ZD40-8 |
| Φ1.8×(3+1.5) | 25 | 7.8 | 95 | ZD40-10 |
| Φ2.2×3 | 22 | 13 | 180 | ZD50-9 |
| Φ2.2×4.4 | 22.4 | 19 | 240 | ZD60-11 |
| Φ2.4×(4.5+2) | 20.4 | 20.8 | 355 | ZD70-8 |
| Φ2.4×4.75 | 20.4 | 22 | 280 | ZD60-8 |
| Φ2.6×(5.25+2.25) | 19.7 | 28 | 400 | ZDY400 |
| Φ2.8×(5+3) | 18.7 | 32 | 500 | MBY560 |
| Φ2.8×(5.75+2.25) | 18.7 | 34 | 500 | MBY560 |
| Φ3×(6.5+2.5) | 18.3 | 43 | 630 | MBY560 |
| Φ3.2×(6.5+2) | 17.08 | 50 | 710 | MBY630 |
| Φ3.2×(7+2.5) | 17.08 | 55 | 710 | MBY630 |
| Φ3.4×(6+3) | 17.47 | 54 | 900 | MBY800 |
| Φ3.4×(6.5+2.5) | 17.47 | 54 | 900 | JDX-80 |
| Φ3.5×8 | 17.2 | 80 | 1000 | MBY800 |
| Φ3.8×(7+2.5) | 16.7 | 75.5 | 1250 | MBY(X)800 |
| Φ3.8×(7.5+3) | 16.7 | 80 | 1400 | JDX-90 |
| Φ3.8×(7.75+3.5) | 16.7 | 85 | 1400 | JDX-90 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
